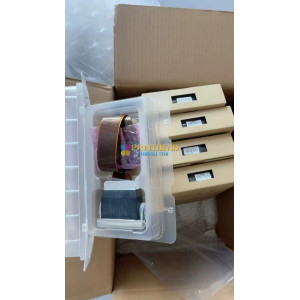

Ricoh GEN5 UV Printhead (Cable: 248mm) - MH5420
This GEN5 UV printhead is suitable for a range of UV, water and solvent printers (Ricoh part number N221414J / N221414T). It has a total of 1.280 nozzles. This is Ricoh original printhead part (number MH5420) and it is covered by a manufacturer warranty. This Ricoh GEN5 is 248mm long in total (head body + cable + connectors). The head cable is 148 mm long. This printhead is the original Durst Alpha 190 / 330 printhead. This printhead comes with the hose barbs which can easily be removed if needed.
This printhead comes with the hose barbs which can easily be removed if needed.
- defects related, in any way, to the use of non-original inks
- clogged, missing or deviated nozzles
- defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- defects related to improper loading of media
- all other defects, failures or damage not considered manufacturing defects
- defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- defects that are merely cosmetic in nature.
Product Specifications
- Dimensions: 89 x 25 x 69 mm (excluding cables)
- Head materials: SST, Nickel alloy and Epoxy Adhesive
- Nozzle plate surface: Coated SST
- Number of nozzles: 4 x 320 nozzles
- Nozzle spacing: 0.1693 mm
- Nozzle density: up to 600 npi
- Piezo type: D33 Stacked PZT
- Temperature control: Integrated Heater and Thermistor
- Operator temperature range: Up to 80° C
- Native drop volume: 7 pl
- Drop volume range: 7 - 35 pl
- Drop velocity: 7 m/s
- Jetting frequency: Up to 60 kHZ
- Ink compatibility: UV Inks
- Life: 100 billion actuations per nozzle
Printer compatibility
