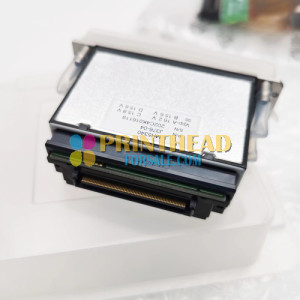

Ricoh GEN6 Printhead (Cable: 447mm) - mh5340
This Ricoh GEN6 head (MH5340 series) is compatible with UV based inks. The service life of the MH5320/MH5340 is more than double that of the MH5421/MH5441 that preceded it. This is the 4 colour head. The 2 colour head is MH5320.
A minimized 5pl droplet size and improved jetting accuracy yields excellent print quality without graininess. With 1,280 nozzles, this head achieves high-resolution 600dpi printing. Greyscale features a maximum frequency of 50kHz, allowing for increased productivity.
This prinhead is available with a cable (including connector) of either 145mm or 447mm. This printhead has a cable of 447mm and a total length including the printhead of 500mm.
This printhead is made of the two skus: J376-03 (head) and J352-04 (cable 445mm).
- defects related, in any way, to the use of non-original inks
- clogged, missing or deviated nozzles
- defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
- defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
- defects related to improper loading of media
- all other defects, failures or damage not considered manufacturing defects
- defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
- defects that are merely cosmetic in nature.
Product Specifications
- Method: Piston pusher with metallic diaphragm plate
- Print Width: 54.1 mm (2.1")
- Dimensions: 89(W) x 66.3 (D) x 24.51 mm (H)
- Weight: 228g (including 45C cable)
- Head materials: SST, Nickel alloy and Epoxy Adhesive
- Nozzle plate surface: Coated SST
- Number of nozzles: 4 x 320 nozzles
- Nozzle spacing: 0.1693 mm
- Nozzle spacing (Row to row distance): A: 1.101mm B: 11.8411 mm
- Compatible ink (UV, Solvent, Asueous, Others.
- Nozzle density: up to 600 npi
- Max.number of color inks: 4 colors
- Temperature control: Integrated Heater and Thermistor
- Operator temperature range: 60° C
- Drop volume: Binary mode : 5pl / Grey-scale mode : 5-15pl
- Jetting frequency: 50kHz (3 levels); 40kHz (4 levels)
- Grey-scale: 4 levels
- Viscosity ranfe: 10~12mPa・s
- Surface tension: 28~35mN/m
- Ink Port: Yes
- This printhead carries a manufacturer warranty.
- Country of origin : Japan
We recommend to change the head cables when installing a new printhead.
Printer compatibility
Product specifications
| Cable length | 447mm |
| Type | Printheads |
