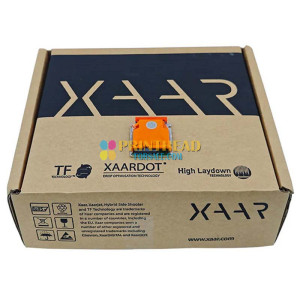

Xaar Irix Core 80W Printhead XP12800073

The Xaar Irix Core 80W printhead with purple insulator is suitable for a wide range of oil, solvent and water based ink systems. This printhead serves as a direct replacement for the discontinued Xaar XP12800005 and XP12800006 heads, and can be used instead of XP12800071, offering identical performance, quality and printer compatibility. No firmware changes are required in the printer software either. The ink connections on the Xaar 128 and Xaar Irix are 3.1 mm in diameter, therefore the recommendation for the tubing is for 3mm ID tubing. The exact choice of tubing would depend upon the inks you are using.

Xaar Irix Product Datasheet

Product specification:

•        Active nozzles: 128
•        Nozzle density (NPI): 185
•        Print swathe (mm): 17
•        Dimensions (mm): 37.2 x 11.3 x 40.8
•        Mass (g): 15.5
•        Colour of insulator: Purple
•        Drop size (pL): 80
•        Drop velocity (m/s): 5
•        Max frequency (kHz): 5.5
•        Linear speed (m/s @ 180 DPI): 0.78
•        Print distance (mm): <5
•        Max angular deviation (degrees): 1.8
•        Drop velocity variation 3σ (m/s): +/- 0.50
•        Country of origin : United Kingdom

Warranty exclusions:

The following items are expressly excluded from the warranty coverage:

•   Defects related to the use of non-original inks
•  Clogged, missing, or deviated nozzles
•  Defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
•  Defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
•   Defects related to improper loading of media
•  All other defects, failures, or damage not considered manufacturing defects
• Defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
• Defects that are merely cosmetic.
