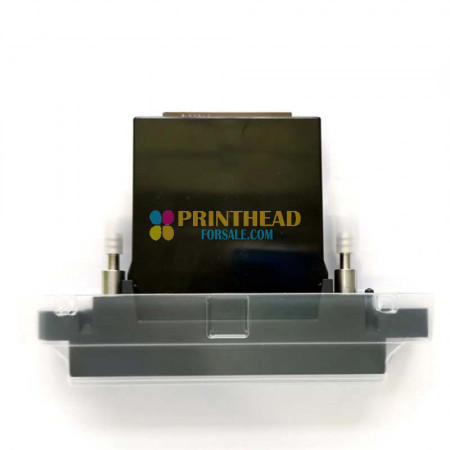

Konica KM1024 3688H Printhead – 1024 Nozzles, 6PL Drop Size for UV & Solvent Printing
The Konica KM1024 3688H Printhead offers 1024 nozzles with a 6PL drop size, perfect for high-quality UV and solvent-based printing.
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
The Konica KM1024 3688H Printhead, also known as the KM1024 SHB, is a robust, shear-mode, piezo on-demand printhead designed for both binary and 8-level greyscale printing. This capability allows for variable drop sizes, enhancing print quality without the need for additional printheads.
With 1024 nozzles and a 6-picoliter drop size, this printhead delivers sharp and precise images, making it suitable for detailed graphics and text. The integrated heater ensures stable temperature control, making it ideal for UV inks, while also being compatible with solvent-based inks.
The KM1024 3688H represents a significant improvement over the previous KM512 series, offering double the print width and enhanced greyscale capabilities. Its efficient design reduces power consumption, contributing to cost savings in high-volume printing environments.
Compatible Printers
This printhead is compatible with various large-format and industrial printers, including:
- AOjet: APro 320F
- Docan: M2
- IIJ: ColourPrint-142-HQ, ColourPrint-282, ColourPrint-352, ColourPrint-72, MonoPrint 282, MonoPrint 352, MonoPrint 72
- Inktec: Jetrix 1212FK, Jetrix KX5, Jetrix KX5-R, Jetrix KX6, Jetrix KX6-R, Jetrix KX7, Jetrix KX7-R
- Yinghe: YH-3304X
Please verify compatibility with your specific printer model before purchasing.
Key Features
- High Resolution: 360 dpi native resolution ensures crisp and clear prints.
- Variable Drop Sizes: Supports 8-level greyscale printing for smoother gradients and richer tones.
- Integrated Heater: Built-in heater enables stable temperature control, ideal for UV inks.
- Energy Efficient: Designed to operate at lower voltages, reducing power consumption.
Specifications
- Technology: On-Demand Piezo Electric (Shared Wall 3 Cycle)
- Native Resolution: 360 dpi
- Drop Size: 6 picoliters
- Number of Nozzles: 1024 (512 nozzles per line)
- Nozzle Spacing: 70.5 microns
- Print Width: 72 mm
- Firing Frequency: 26 kHz
- Ink Compatibility: UV and solvent-based inks
- Heater: Integrated
- Dimensions: W131mm × D18mm × H89mm
- Weight: Approximately 150g
Encouragement to Buy
Upgrade your printing capabilities with the Konica KM1024 3688H Printhead. Its high-resolution output, variable drop size, and energy-efficient design make it an excellent choice for professional UV and solvent-based printing applications. Don't miss out—order yours today!
